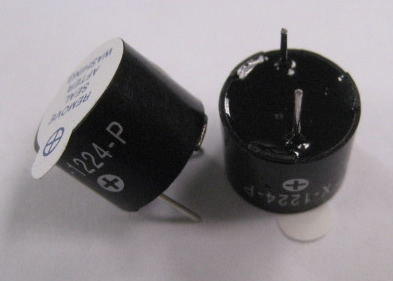

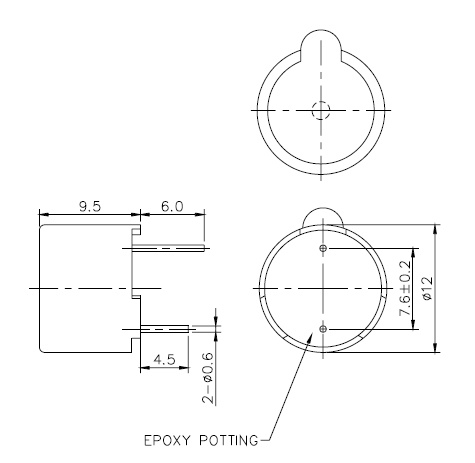

	Magnetic Buzzer - KX-1224-P Specs Item   Units Specifications   Conditions 1 Rated Voltage VDC 24   Volts D.C. 2 Operating Voltage VDC 8 ~ 30   Volts D.C 3 Mean Current mA 30 (Max)   Applying rated voltage 4 Direct Current Resistance Ohm None     5 Sound Output dBA 85 (min)   Distance at 10cm,applying rated voltage 6 Basic Frequency Hz 2600± 200     7 Operating Temp. ℃ -40 ~ +85     8 Storage Temp. ℃ -50 ~ +95     9 Dimension mm Φ 12.0 Height 9.5 See attached drawing. 10 Weight Gram 2     11 Terminal   Two Pins   See attached drawing.
