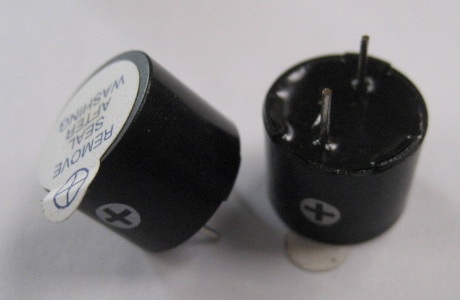

| Magnetic
Buzzer - KX-1212-P1A |
  |
| Items |
|
Units |
Specifications |
|
Conditions |
| 1 |
Rated Voltage |
Vdc |
12 |
|
Volts D.C. |
| 2 |
Operating Voltage |
Vdc |
8.0~16.0 |
|
Volts D.C. |
| 2 |
Mean Current |
mA |
30(Max) |
|
Applying rated voltage. |
| 3 |
Direct Current Resistance |
Ohm |
None |
|
|
| 4 |
Sound Output |
dBA |
90(min) |
|
Distance at 10cm,applying rated voltage |
| 5 |
Basic Frequency |
Hz |
2300 ¡Ó 300 |
|
|
| 6 |
Operating Temp. |
¢J |
-40 ~ +85 |
|
|
| 7 |
Storage Temp. |
¢J |
-50 ~ +95 |
|
|
| 8 |

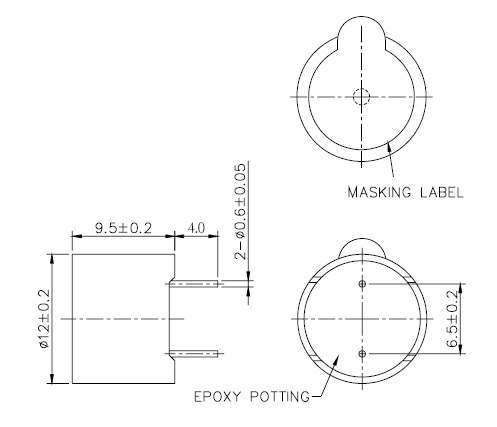

Dimension |
mm |
£X 12.0 |
Height 9.5 |
See attached drawing. |
| 9 |
Weight |
Gram |
2 |
|
|
| 10 |
Terminal |
|
Two Pins |
|
See attached drawing. |
|
|
|
|
|
