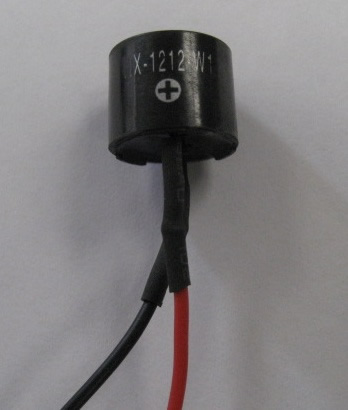

| Magnetic
Buzzer - KX-1212-W1 |
  |
| Items |
|
Units |
Specifications |
Conditions |
| 1 |
Rated Voltage |
VDC |
12 |
|
| 2 |
Operating Voltage |
VDC |
8.0~16.0 |
|
| 3 |
Mean Current |
mA |
35 (Max) |
|
| 4 |
Sound Output |
dBA |
85 (min) |
Distance at 10cm,applying rated voltage |
| 5 |
Basic Frequency |
Hz |
2300 ¡Ó 300 |
|
| 6 |
Operating Temp. |
¢J |
-20 ~ +70 |
|
| 7 |
Storage Temp. |
¢J |
-30 ~ +80 |
|
| 8 |
Weight |
Gram |
2 |
|
| 9 |
Lead Wire |
|
|
PVC 7/0.14 * 1.26t.c105¢J |
|
|
|
|
|
