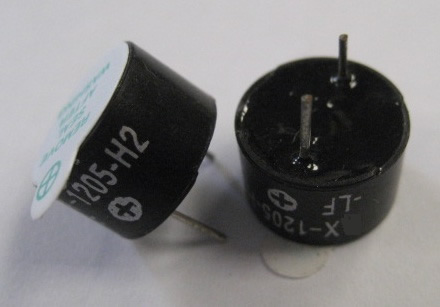

| Magnetic
Buzzer - KX-1205-H2 |
  |
| Items |
|
Units |
Specifications |
Conditions |
| 1 |
Rated Voltage |
VDC |
5 |
Response Time 500 mSec |
| 2 |
Operating Voltage |
VDC |
4 ~ 7 |
Volts D.C |
| 3 |
Consumption Current |
mA |
Mean 30 |
Applying rated voltage |
| |
|
(Max) |
Peak 90 |
|
| 4 |
Direct Current Resistance |
Ohm |
None |
|
| 5 |
Sound Output |
dBA |
83 |
Distance at 10cm,applying rated voltage |
| |
|
(min) |
|
|
| 6 |
Basic Frequency |
Hz |
2300¡Ó 300 |
|
| 7 |
Operating Temp. |
¢J |
-20 ~ +70 |
|
| 8 |
Storage Temp. |
¢J |
-30 ~ +80 |
|
| 9 |
Weight |
Gram |
1 |
|
|
|
|
|
|
