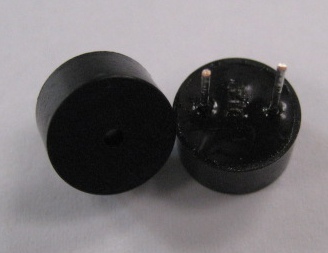

Magnetic Buzzer - AX-1012
Magnetic BuzzerAX-1012
Specs
Items   Units Specifications   Conditions
1 Rated Voltage VDC 12   Volts D.C.
2 Operating Voltage VDC 9 ~ 15   Volts D.C
3 Mean Current mA 25 (Max)   Applying rated voltage
4 Direct Current Resistance Ohm None
5 Sound Output dBA 80(min)   Distance at 10cm,applying rated voltage
6 Basic Frequency Hz 2500¡Ó 200
7 Operating Temp. ¢J -40 ~ +85
8 Storage Temp. ¢J -50 ~ +95

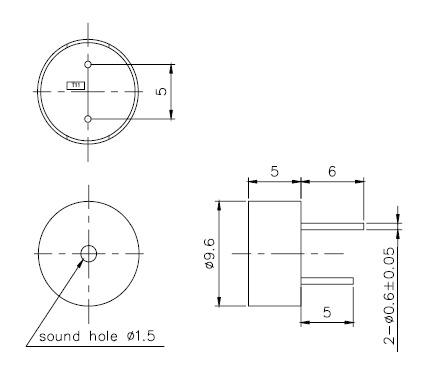

9 Dimension mm £X 9.6 Height 5.0 See attached drawing.
10 Weight Gram 1
11 Terminal   Two Pins   See attached drawing.
