| 1 |
Type |

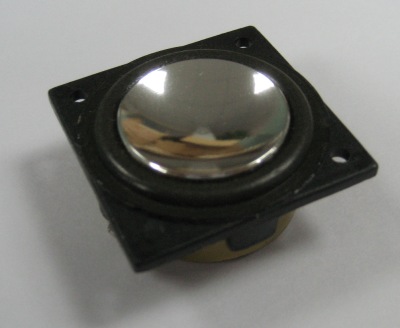

Dynamic speaker |
| 2 |

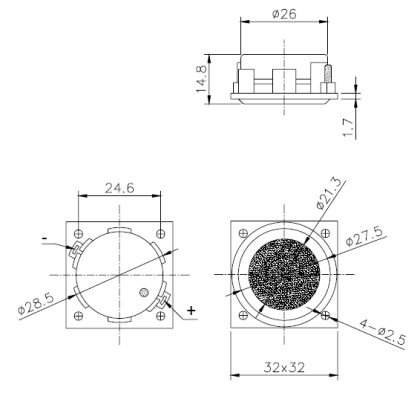

Dimension |
External diameter 32x32 mm. |
| 3 |
Rated Input Power |
1.0 W |
| 4 |
Impedance |
8 ohm ± 15% at 1500Hz. |
| 5 |
Resonance Frequency (Fo) |
550 Hz ± 20% at Fo, 1V. |
| 6 |
Sensitivity (S.P.L.) |
74dB(W/m) ± 3 dB at AVE 0.6K,0.8K,1.0K,1.2K(Hz). |
| |
|
93dB(1.0W/0.1m) ± 3 dB |
| 7 |

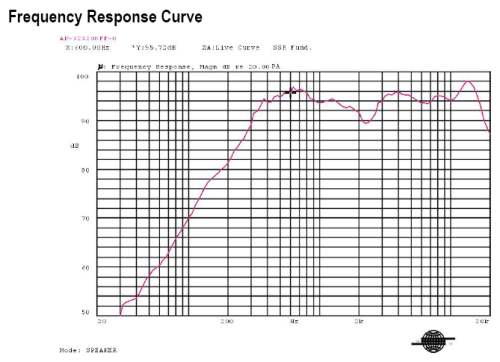

Frequency Range |
Fo – 20KHz. |
| 8 |
Distortion |
Less than 10 % at 1500Hz,1.0 W. |
| 9 |
Max. Input Power |
Must be normal at 2.0W white noise for 1 minute. |
| 10 |
Voice Coil |
Diameter 20mm |
| 11 |
Magnet |
Rare earth permanent (Nd-Fe-B) magnet Φ19x3.0mm |
| 12 |
Weight |
26g ± 3g |
| 13 |
Appearance |
Should not exist any obstacle to be harmful to normal operation;
damages, cracks, rusts and distortions, etc. |
| 14 |
Operation Test |
Must be normal at program source –1.0W |
| 15 |
Buzz, Rattle, etc. |
Should not be audible at 2.83V sine Wave between Fo to 20KHz |
| 16 |
Polarity |
When positive voltage is applied to the terminal marked (+),
diaphragm should move to the front. |
| 17 |
Terminal Strength |
Capable of withstand 1kg load for 30 seconds without resulting
in any damage or rejection. |
| 18 |
Load Test |
1.0 W white noise is applied for 96 hours and satisfy the
test listed on item 05,06,13,15. |
| 19 |
High Temp. Test |
Keep 96 hours at +70℃±3℃ and leave 3 hours in normal temperature
and then check. |
| 20 |
Low Temp. Test |
Keep 96 hours at -20℃±3℃ and leave 3 hours in normal temperature
and then check. |
| 21 |
Humidity Test |
Keep 96 hours at + 60℃±3℃ relative humidity 95% and leave
3 hours in normal temperature and then checked. |
