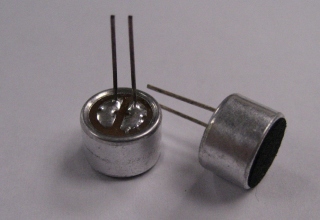

| Condenser
Microphone - KMB-O97A38-NB1 |
  |
| |
|
SPECIFICATIONS |
| 1 |
Electret Type |
Foil type |
| 2 |
Sensitivity |
-38¡Ó3dB (0dB=1V/Pa,1KHz) Band form 300 to 3K Hz |
| 3 |
Output Impedance (Max) |
2.2K£[ |
| 4 |
Directivity |
Omnidirectional |
| 5 |
Frequency Range |
70-20,000Hz |
| 6 |
Max.Operation Voltage |
10V |
| 7 |
Standard Operation Voltage |
4.5V |
| 8 |
Current Consumption |
Max.0.5mA |
| 9 |
Sensitivity Reduction |
Within -3dB 0dB=1V/Pa,1KHz Vs=4.5 to 4.0V |
| 10 |
S/N Ratio |
> 58dB |
| 11 |
Operating Temperature |
-25~+70¢J |
| 12 |
Storage Temperature |
-40~+70¢J |
|
|
|
|
|
