| 1 |

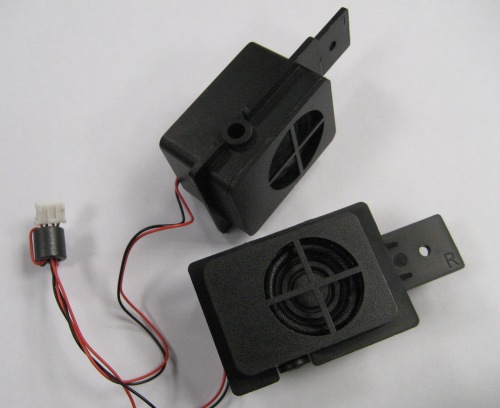

Type |
Dynamic Speaker + Sound Box |
| 2 |

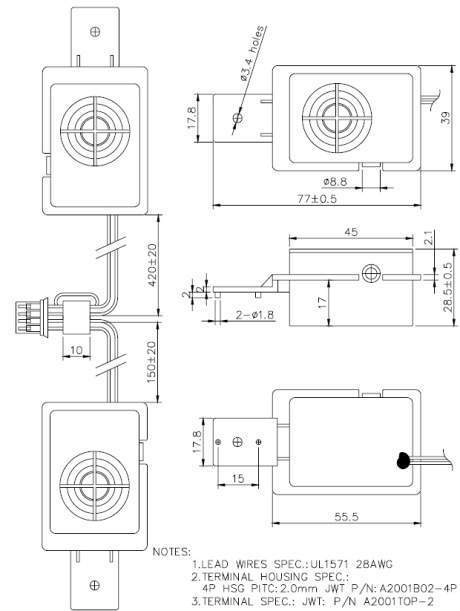

Dimension |
External diameter 45 x 39 x 28.5 mm |
| 3 |
Rated Input Power |
2.0 W |
| 4 |
Impedance |
8 ohm ¡Ó 15% at 1000Hz |
| 5 |
Resonance Frequency (Fo) |
530 Hz ¡Ó 20% at Fo, 1V |
| 6 |
Sensitivity (S.P.L.) |
70dB(W/m) ¡Ó 3 dB at AVE 1.5K,1.8K,2.0K,2.5K(Hz). |
| 7 |

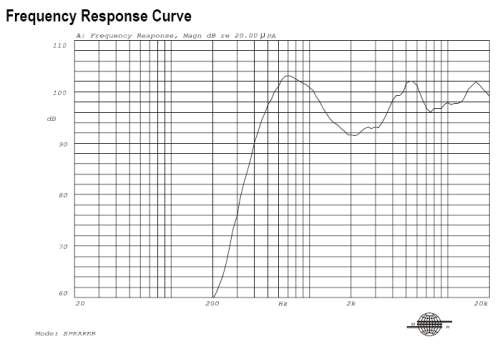

Frequency Range |
Fo ¡V 9KHz |
| 8 |
Distortion |
Less than 10 % at 1500Hz 2.0 W |
| 9 |
Max. Input Power |
Must be normal at 3.0W white noise for 1 minute. |
| 10 |
Voice Coil |
Diameter 13.5 mm |
| 11 |
Magnet |
Rare earth permanent (Nd-Fe-B) magnet £X12.5 x 5mm |
| 12 |
Weight |
62.2g ¡Ó 1g |
| 13 |
Appearance |
Should not exist any obstacle to be harmful to normal operation;
damages, cracks, rusts and distortions, etc. |
| 14 |
Operation Test |
Must be normal at program source ¡V2.0W |
| 15 |
Buzz, Rattle, etc. |
Should not be audible at 4 V sine Wave between Fo to 20KHz |
| 16 |
Polarity |
When positive voltage is applied to the terminal marked (+),
diaphragm should move to the front. |
