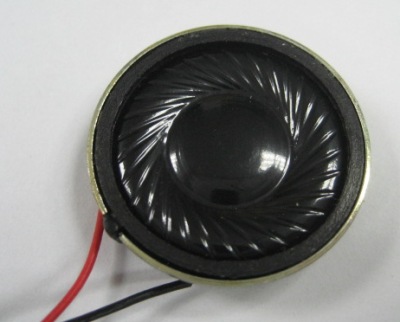

Micro Speaker - K-23A08B-0



Dynamic speakermicro speaker

Frequency response curve
Spec.
ITEM   SPECIFICATIONS
1 Type Dynamic speaker

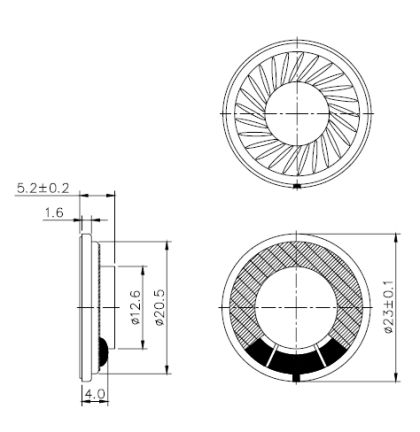

2 Dimension External diameter 23 mm
3 Rated Input Power 0.5 W
4 Impedance 8 ohm ± 15% at 2KHz
5 Resonance Frequency (Fo) 670 Hz ± 20% at Fo, 1V
6 Sensitivity (S.P.L.) 80dB(W/m) ± 3 dB at AVE 1.0K-2.0K(Hz).
    92dB(0.5W/0.1m) ± 3 dB
7 Frequency Range Fo – 20KHz
8 Total Harmonics Distortion Less than 8 % at 1KHz,1.0V.
9 Max. Input Power Must be normal at 0.7W white noise for 1 minute.
10 Voice Coil Diameter 10.5 mm
11 Magnet Rare earth permanent (Nd-Fe-B) magnet Φ9.5 x 1.5 mm
12 Weight 4.1g ± 0.3g
13 Appearance Should not exist any obstacle to be harmful to normal operation; damages, cracks, rusts and distortions, etc.
14 Operation Test Must be normal at program source –0.5W
15 Buzz, Rattle, etc. Should not be audible at 2.0V sine Wave between Fo to 20KHz
16 Polarity When positive voltage is applied to the terminal marked (+), diaphragm should move to the front.
17 Terminal Strength Capable of withstand 1kg load for 30 seconds without resulting in any damage or rejection.
18 Temperature Operating temperature: -20℃ to +60℃
    Storage temperature: -30℃ to +70℃
